Cardiac Monitor

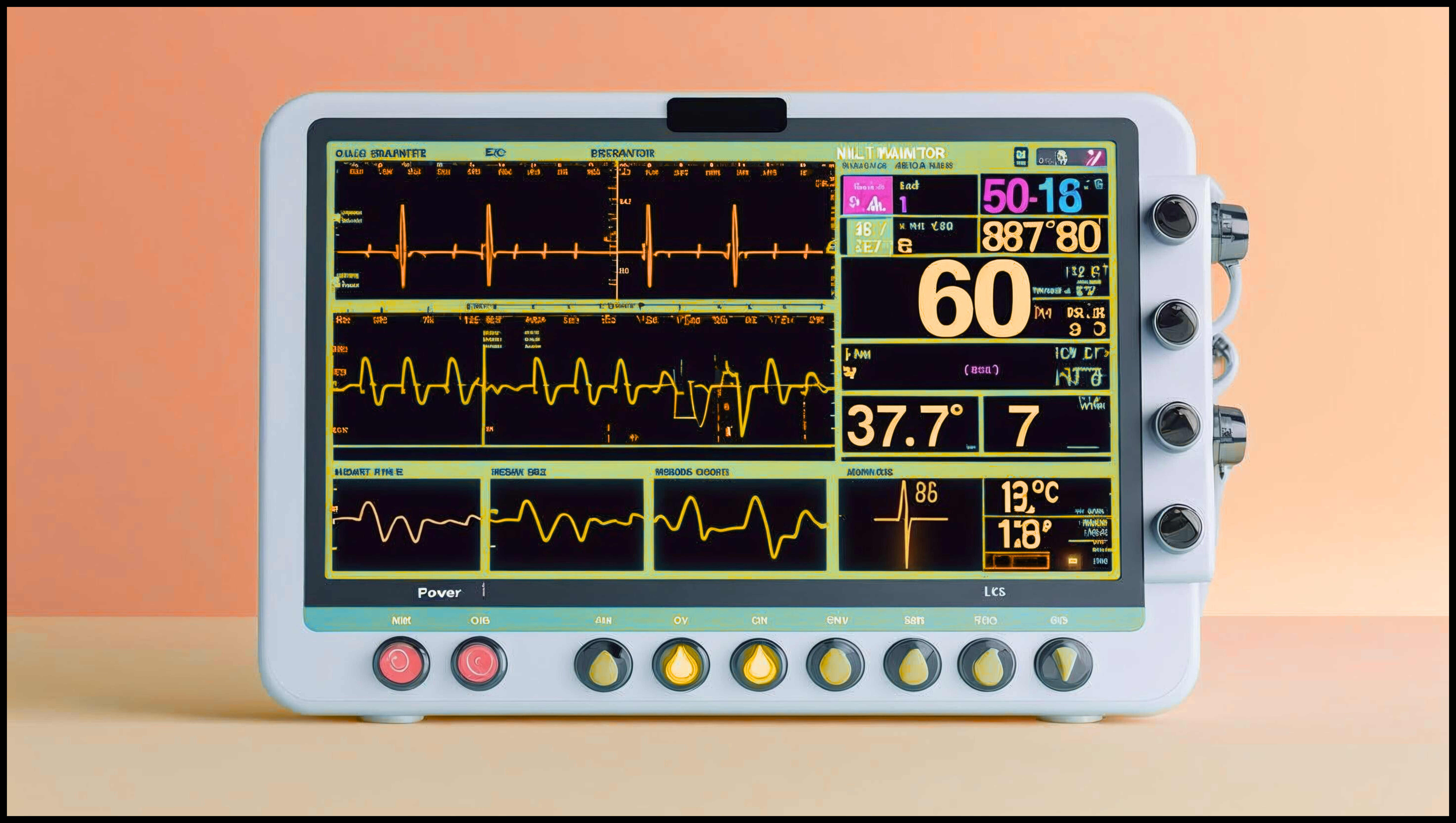

A cardiac monitor is a medical device that continuously tracks and displays a patient's heart rate, rhythm, and electrical activity through electrodes placed on the chest. These monitors are vital in critical care units, operating rooms, and emergency settings to detect life-threatening arrhythmias like ventricular tachycardia or asystole. Modern systems feature wireless connectivity, allowing remote monitoring of multiple patients from a central station, while advanced algorithms can differentiate between artifact and true cardiac events. Portable telemetry units enable ambulatory monitoring for patients at risk of arrhythmias during normal activities. Some newer models incorporate.
The 13 sections, in brief
Short summaries of each section. The full lessons, images and quizzes are in the Platform.
Overview
A nurse on a night shift walks past a bay where a monitor has been alarming for forty seconds. She glances at it, sees the familiar yellow banner, and carries on. She is not negligent. That monitor alarmed two hundred times during her last shift, and on roughly one hundred and ninety of those occasions there was nothing wrong. The patient had moved. A lead had come loose.
Operations
Follow the signal from the skin to the screen, then follow what happens to the alarm. It starts at the electrodes. Adhesive pads with a conductive gel, placed on the chest. Beneath each one, a silver and silver chloride interface converts the movement of ions in the body into the movement of electrons in a wire.
Importance
The first argument is about what continuous monitoring catches that nothing else does. Dangerous rhythm changes are intermittent, and a person cannot be watched continuously by another person. Ventricular tachycardia, ventricular fibrillation, a complete heart block, a pause of several seconds.
Physics
Physics Involved in the Cardiac monitor Device: Concept 1, Structural Logic and Functional Architecture of the Cardiac Monitor The cardiac monitor is not just a screen that displays heartbeats; it is a real-time bioelectrical observatory, a continuous translation machine that converts ionic currents inside myocardial tissue into digital voltage tracings visible at the bedside.
Features
Start here, because almost every problem in this device starts here. Convert an ionic current in the body into an electronic current in a wire, which is a genuine chemistry problem rather than a connection problem. A silver and silver chloride interface does it, because silver chloride readily exchanges chloride ions with the gel, which lets charge cross the boundary without a large voltage building up.
Applications
Every use of this device is one of three things. Catching a sudden event. Watching a trend develop. Or making a treatment safe enough to give. Most units are set up for the first and get most of their value from the second. The founding application and the one that created the coronary care unit.
Physiology
Where the electrical signal comes from, how it reaches the skin, what a deteriorating body does in what order, and why electrical activity is not the same thing as a circulation. The heart generates its own electricity, and the arrangement is the reason the trace has the shape it does.
Safety
This device is physically almost harmless and it appears repeatedly in death investigations. Nobody is injured by the monitor itself. People die because an alarm was not heard among two hundred others, because a lead was off and nobody noticed, because a signal loss was not escalated, because limits had been widened to stop the noise, or because a rhythm on a screen was treated instead of a patient.
Advancements
Forget release years. This device has an unusual shape: the measurement improved steadily, the alarm problem got worse at every step, and the most important advances have been organisational rather than technical. Somebody put an oscilloscope beside a patient and watched the heart in real time instead of taking a recording and developing it. Continuous observation became possible.
In Research
The device that everybody has and nobody measures Almost every hospital bed in the developed world has access to a cardiac monitor. And almost no hospital knows how many alarms its monitors generate, what proportion are false, how many are responded to, or how long the response takes. That data is being produced continuously, is stored in the monitoring system, and is almost never extracted.
Logistics
An engineer who understands this device is useful. An engineer who understands that the electrodes cost more than the monitors understands what is actually being sold. A monitor lasts eight to twelve years. Every patient on it consumes three to five electrodes a day, an oximeter probe, a blood pressure cuff, and lead wires if the hospital has moved to single-patient use.
Alternatives
An alternative is not a competing product. It is another way of answering the clinical question, and here the question splits three ways. Do you need to catch a sudden event, watch a trend, or investigate something intermittent? Those have different answers, and a continuous bedside monitor is the right answer to only one of them.
Ethical
Most devices in this library raise ethical questions about what is done to a patient. This one raises a question about what is done to everybody else in the room. Monitoring a patient who does not need it is usually framed as a cautious decision about that individual. It is not.
